ARCHERY deployment for NorduGrid
The NorduGrid topology for ARCHERY
The root element of the hierarchical service registry tree is the nordugrid.org DNS zone hosted by Niels Bohr Institutet.
The root zone holds references to:
per-country registries in the dedicated sub-zones under
<country>.archery.nordugrid.orgdomains orprojects-based registries under project-owned specific DNS zones (e.g.
archery.myproject.org)

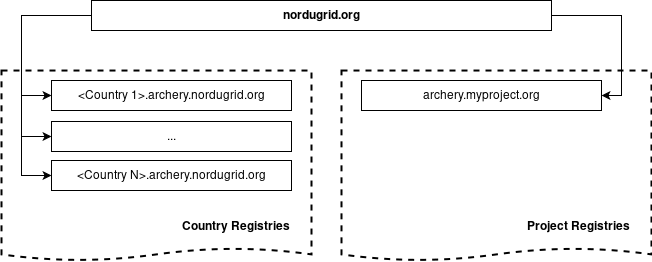

Fig. 9 The NorduGrid ARCHERY topology model
Per-Country ARCHERY DNS zones of the NorduGrid
Services indexed by NorduGrid are naturally belonging to a country. Therefore the deployed NorduGrid ARCHERY topology contains a set of contry-level DNS zones.
These per-country ARCHERY zones are maintained in a collaborative manner by different organizations responsible for specific country services.
A country-level DNS subzone was created for every country that previously run an ARC CE (services were taken from the monitor and GOCDB)
Note
Zones whose maintenance is not delegated yet are served by Niels Bohr Institutet along with the root nordugrid.org zone.
The summary table shows the country-level ARCHERY entry points together with the administrating contact details.
Country |
Main entry point |
Additional entry points |
Administration contact |
|---|---|---|---|
Denmark |
|
Petter Urkedal, urkedal@nbi.dk |
|
Estonia |
|
Zone is not delegated yet |
|
Finland |
|
Zone is not delegated yet |
|
Hungary |
|
Zone is not delegated yet |
|
Portugal and Spain |
|
Zone is not delegated yet |
|
Lithuania |
|
Zone is not delegated yet |
|
Norway |
|
Zone is not delegated yet |
|
Slovakia |
|
Zone is not delegated yet |
|
Slovenia |
|
Zone is not delegated yet |
|
Sweden |
|
Zone is not delegated yet |
|
Switzerland |
|
Zone is not delegated yet |
|
Ukraine |
|
|
Andrii Salnikov, archery@grid.org.ua |
UK |
|
Zone is not delegated yet |
Contact us if you want to take over the administration of a contry sub-zone.
Project-based ARCHERY Registries of NorduGrid
Other way to organize services is to group them by the host project. ARCHERY allows services to be affiliated with multiple projects.
It is assumed that projects are administrating their own list of services and that information is stored under a dedicated ARCHERY project-owned DNS zone.
The summary table collects ARCHERY entry points and administration contact information for projects indexed by the NorduGrid.
Registry |
Entry point |
Administration contact |
|---|---|---|
NeIC Services for ATLAS |
|
Dmytro Karpenko, dmytrok@fys.uio.no |
ARCHERY DNS zone administration tasks
As an ARCHERY DNS zone administrator you are expected to do following administration tasks:
one-time initial DNS zone setup,
defining and keeping up to date ARCHERY instance services topology in the configuration file,
operate regular runs of archery-manage to keep DNS zone info up to date (e.g. cron-job).
Registering site in the ARCHERY
In ARCHERY sites are indexed top-to-bottom and the list of ARC CEs a maintained on the country-level and/or project-level.
As a site administrotor you should technically do nothing for site registration.
Warning
In contrast to previous indexing system, ARCHERY does not requires bottop-to-top registration.
Static list of CEs is managed by ARCHERY administrator. In case your CE is not yet in the registry [1] contact your country registry manager to find the details about the established registration procedures.
Contact information for known ARCHERY managers can be found below: they will provide details for the organizational procedures (if any) upon request.
You can also contact us in case of any questions.
